Among the various types of steel silos used in modern grain storage systems, Henan Jinrui's welded steel silo stands apart as the premier solution for applications where airtightness, structural strength, and decades of reliable service are non-negotiable.

Unlike bolted silos (assembled from prefabricated panels) or spiral silos (continuously formed on-site), a welded steel silo is built by permanently joining steel plates together through continuous on-site welding. The result is a seamless, monolithic structure with no joints or gaskets—making it the ultimate choice for grain storage facilities that demand maximum protection for wheat, corn, rice, and soybeans over many years.

1. Unmatched Airtightness

The fully welded, seamless construction of a welded steel silo effectively blocks external air and water vapor. This superior airtightness makes it the preferred choice for controlled atmosphere (CA) storage, fumigation, and long-term preservation of high-value grains where oxygen levels must be strictly managed to prevent spoilage and pest activity.

2. Exceptional Strength & Durability

Constructed from high-strength structural steel plates (typically 4–12 mm thick, depending on silo diameter and capacity), the continuous welded seams create a rigid frame with high bearing capacity. This robust construction provides outstanding resistance to wind loads, seismic forces, and the internal pressures generated by settling grain. A properly maintained welded steel silo can serve reliably for 50 to 80 years—far outlasting other silo types.

3. Full Protection Against Moisture & Pests

Because there are no bolt holes, gaskets, or seams, a welded steel silo eliminates potential leak points where moisture could enter or fumigation gas could escape. This complete sealing protects stored grain from rain, humidity, rodents, and insects—preserving quality and reducing post-harvest losses.

4. Unlimited Customization

Welded construction allows for virtually unlimited customization in terms of diameter, height, wall thickness, and discharge configuration. Henan Jinrui can engineer welded steel silos with capacities ranging from hundreds to over 100,000 tons, making them ideal for large grain terminals, port facilities, and strategic reserve depots.

5. Smooth Interior Flow

The welded interior can be ground to an ultra-smooth finish, which facilitates complete grain discharge, eliminates bacteria traps, and simplifies cleaning between different grain types—an important consideration for grain processing facilities handling multiple crops.

6. Corrosion Resistance

Hot-dip galvanized coatings or specialized anti-corrosion treatments protect welded steel silos against rust, even in coastal regions with high salt spray or high-humidity environments. This ensures long-term structural integrity of grain silos with minimal maintenance.

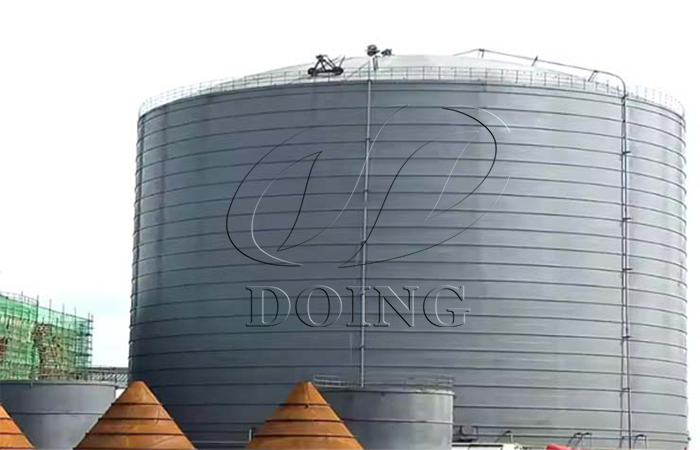

Welded steel silo for grain storage

Welded steel silos shine in operations where quality preservation and long-term reliability are non-negotiable. Typical applications include:

• Large-scale grain terminals & ports – Storing millions of bushels of wheat, corn, or soybeans awaiting export, with integrated high-throughput conveying systems.

• Controlled atmosphere (CA) storage – For rice, wheat, and other grains that require low-oxygen environments to maintain freshness and extend shelf life.

• Strategic grain reserves – National or regional depots demanding absolute security, airtightness, and decades of trouble-free service.

• Flour mills & processing plants – Long-term storage of wheat and other raw materials to ensure stable supply between harvests.

• Feed mills & oilseed plants – Storing peanuts, soybeans, and other inputs where consistent quality is critical for final product integrity.

• Coastal & high-humidity regions – Where corrosion resistance and protection against salt spray are essential for grain silos' long-term durability.

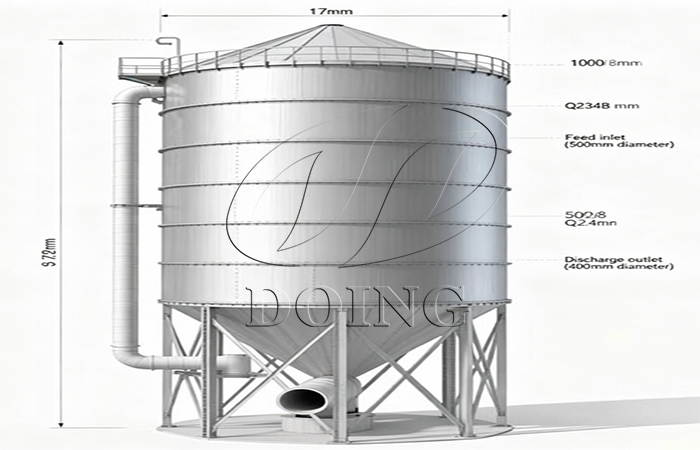

  Henan Jinrui welded steel silo

Here are the key engineering choices that define a Henan Jinrui welded steel silo:

• Plate thickness – Ranges from 4 to 12 mm, selected based on grain silo diameter, storage capacity, and local wind/seismic conditions.

• Welding method – Continuous butt welding with staggered joints to avoid stress concentration and ensure uniform strength.

• Foundation – Engineered concrete base designed to support the full weight of the grain silo and stored grain; requires less material than concrete silos.

• Optional accessories – Aeration system, temperature monitoring system, level indicators, access ladders, dust collection system, and automated conveying systems.

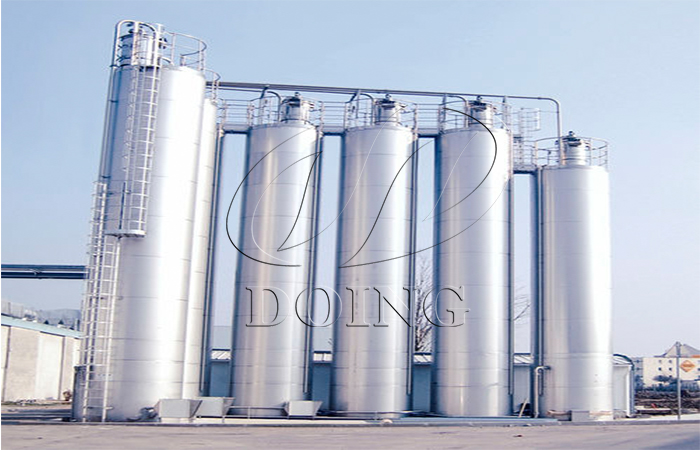

  Welded steel silo for grain storage

While welded steel silos offer unparalleled advantages for long-term grain storage, they are not the right choice for every application. Important considerations include:

• Higher initial investment – Compared to bolted or spiral silos, welded construction requires more skilled labor, specialized equipment, and longer on-site construction time.

• Permanent installation – Once built, a welded steel silo cannot be easily disassembled or relocated. This makes them best suited for permanent facilities with long-term operational horizons.

• Skilled welding requirements – Quality control during the welding process is critical; Henan Jinrui adopts rigorous inspection protocols to ensure every joint meets international standards.

Henan Jinrui welded steel silo is more than a container—it is a permanent asset. While other silo types may serve for a few decades, a welded steel silo for grain storage is engineered to stand for 50 to 80 years, providing airtight protection, structural integrity, and peace of mind across generations. When you choose a Henan Jinrui welded steel silo, you are not just buying storage capacity—you are investing in a grain storage system that requires minimal maintenance, withstands harsh environments, and preserves the quality of your wheat, corn, or rice year after year.

Ready to build a storage solution that lasts a lifetime? Contact Henan Jinrui today. Let our engineers design a welded steel silo tailored to your capacity, climate, and crop—and deliver a grain storage system you will never need to replace.
