Most grain storage silo locks you into a fixed capacity for decades. Bolted silos don’t. Built from prefabricated galvanized panels and assembled with high‑strength bolts, a Henan Jinrui bolted silo can be installed quickly, expanded anytime, and even relocated. It’s the flexible grain storage system for wheat, corn, rice, and soybeans.

Over the past two decades, bolted silos have quietly replaced concrete bins and even some welded silos in grain processing facilities. The reason isn’t just lower cost – it’s flexibility.

1. Fast installation, lower risk

Because every panel is factory-made, on-site assembly is pure bolt-together work. No welding means no weather delays, no specialized heavy equipment, and no long construction schedules. A bolted silo can go from foundation to full operation in days, not months.

2. Expandable, add capacity without rebuilding

Need 20% more storage next year? Add another ring of corrugated panels. Planning a major capacity increase? Bolt on a second grain silo beside the first. The modular design means your grain storage system can evolve with your business – you never pay for capacity you don’t yet need.

3. Relocatable, protect your investment

Leased land? Temporary project? Uncertain future? A bolted silo can be disassembled, moved to a new site, and reassembled. This is impossible with welded or concrete silos.

4. Cost-effective, with solid longevity

Hot-dip galvanized steel (275g/m² or higher) resists corrosion for 20–30 years. That’s more than enough for most grain processing operations, and the lower initial investment means faster payback.

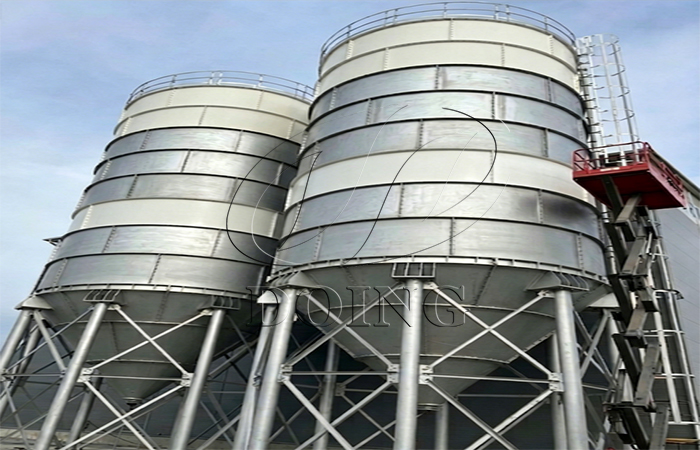

Henan Jinrui bolted silo for grain

Specifications may vary by project requirements.

Grain processing plants (flour mills, feed mills, oilseed plants) – For storing wheat, corn, soybeans, and other raw materials. The ability to add silos or increase height as production grows is a major advantage of a Henan Jinrui bolted silo.

On-farm storage – For corn, wheat, rice, and sunflowers, especially on farms that may change land use or need temporary storage before sale. A bolted silo for grain storage offers the flexibility these operations require.

Grain collection centers – Where grain is aggregated from multiple farms before transport to larger terminals. Speed of installation and lower upfront cost make the grain bolted silo an ideal choice.

Port terminals and logistics hubs – As supplementary storage or for high-throughput receiving where future expansion is anticipated. Henan Jinrui bolted silos are designed to scale with demand.

Animal feed mills – For corn, soybean meal, and finished pellets. The modular design of a bolted silo for grain storage allows easy integration with existing conveying systems.

And where are they not the best fit? Bolted silos for grain storage are not recommended for controlled atmosphere (CA) storage that requires near-perfect gas-tightness, for multi-generational permanent assets (50+ years), or for fine powders and highly moisture-sensitive materials that demand absolute sealing. In those cases, Henan Jinrui’s welded silos or spiral silos are better options.

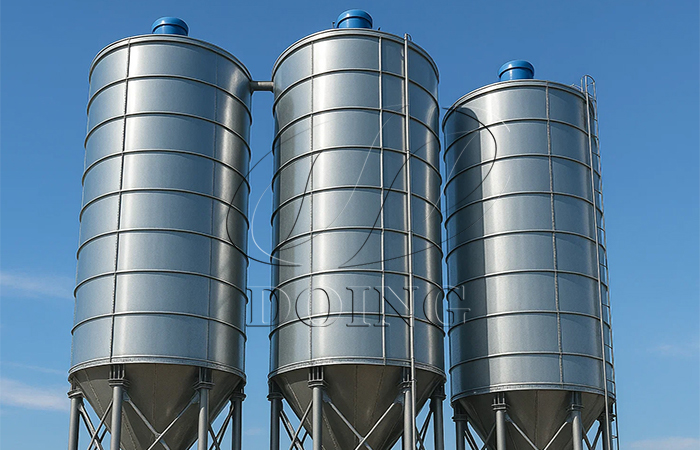

Bolted silo for grain storage

Installing a Henan Jinrui bolted silo is straightforward and fast – typically 1 to 3 weeks for a single silo, compared to months for concrete or welded alternatives. Here is the step-by-step process:

• Prepare foundation – A concrete ring or slab is poured based on silo diameter and soil conditions. The lighter weight of a bolted silo for grain storage means simpler foundation requirements than welded or concrete silos.

• Assemble bottom ring – The first row of corrugated panels is bolted together and to the foundation. All connections use high-strength bolts – no welding required.

• Build up – Additional rings are added, with stiffeners attached at intervals. Each grain bolted silo is assembled ring by ring, allowing precise control over height and capacity.

• Install roof – The conical or domed roof is assembled on the ground, then lifted into place and bolted to the top ring.

• Add accessories – Aeration ducts, temperature sensors, ladders, and conveying equipment are installed, transforming the Henan Jinrui bolted silo into a fully functional grain storage system.

• Test and commission – Airtightness is checked (within bolted silo specifications), and the system is ready for grain.

Total time: Often 1–3 weeks for a single bolted silo for grain storage, far faster than welded or concrete silos.

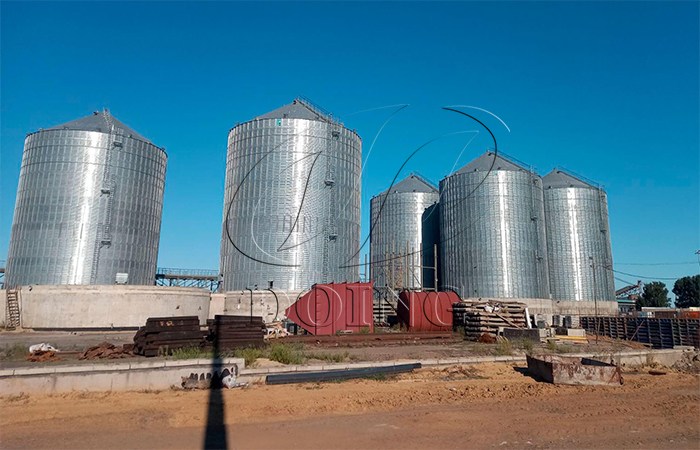

Grain bolted silo

Henan Jinrui bolted silo doesn’t force you to predict your capacity needs for the next 30 years. It grows when you grow, relocates when you move, and pays back faster than permanent structures. That’s the real value of modular design – not just lower cost, but the freedom to change your mind.

Whether you’re expanding a flour mill, setting up a grain collection center, or managing farm storage, you need a grain storage system that works for your business, not against it. Henan Jinrui grain silo delivers exactly that – with engineering expertise, quality materials, and a focus on what matters most to you.

Ready to build grain storage system? Contact Henan Jinrui today. Tell us your current needs and your growth plans. We’ll design a bolted silo for grain storage that fits perfectly – and stays flexible for whatever comes next.
