In the world of grain storage systems, few technologies match the speed and sealing performance of the spiral silo (also known as a spiral steel silo or spiral floding silo or lipp silo). Unlike welded silos (built plate-by-plate on-site) or bolted silos (assembled from prefabricated panels), a spiral silo is formed continuously from a single steel strip using specialised coiling equipment. The result is a seamless cylindrical wall with a distinctive external rib – stronger, more airtight, and built in a fraction of the time of traditional storage structures.

Henan Jinrui engineers spiral silos specifically for grain storage and grain processing facilities – wheat, corn, rice, and soybeans – as well as for feed, pellets, and even certain liquid applications. This is the silo type that combines speed, strength, and sealing into one integrated solution.

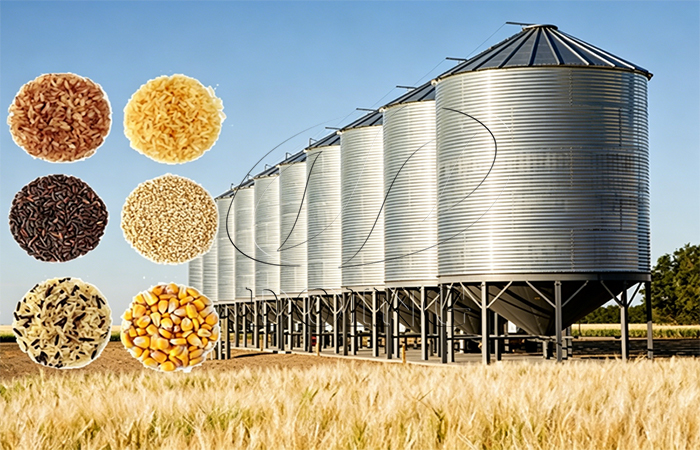

Spiral silo for grain storage system

The construction method sets the spiral silo apart from all other steel silo types.

A flat steel coil (typically hot-dip galvanised or stainless steel) is fed into a portable forming machine placed at the construction site. The machine gradually shapes the strip into a helical profile while simultaneously crimping the overlapping edges – usually in five layers – to form a tight, interlocking seam. As the machine rotates, the silo wall rises continuously from the foundation to the roof. No welding. No bolted panels. No vertical seams.

The result is a grain spiral silo with a smooth interior (optional continuous inside welding for ultra‑smooth flow) and a reinforced exterior rib that runs spirally around the entire circumference. This rib – formed by the crimped edge – is up to five times thicker than the base steel plate, acting as a built-in stiffener that greatly enhances structural strength and wind resistance.

Key process advantages:

• On-site construction eliminates heavy transport of large panels

• The forming speed typically reaches 300 meters of seam per hour

• The entire silo can be erected in days, not weeks or months

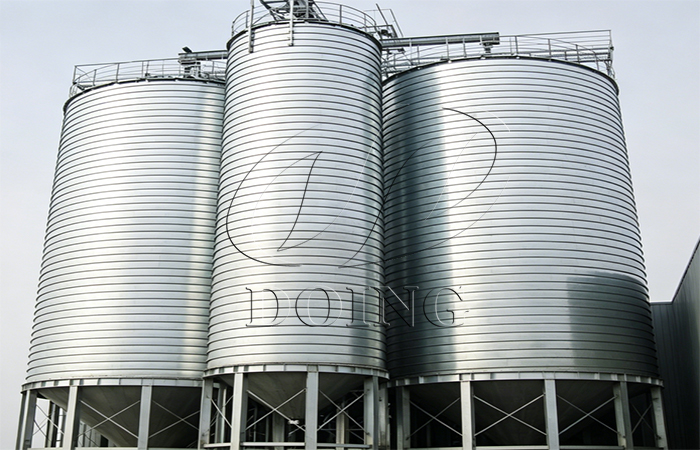

  Spiral silo for grain storage

Like other steel silo types, spiral silos can be configured with two common bottom designs, each suited to different discharge requirements:

Henan Jinrui can supply either configuration, and also offer compound cones (e.g., 45°/70°) for specialised materials.

1. Exceptional Airtightness

The continuous five-layer crimped seam creates a near-perfect seal – no bolt holes, no gaskets, no welded gaps. This makes the spiral silo ideal for phosphine fumigation, controlled atmosphere (CA) storage, and protecting grain from moisture and pests. The seal is integral to the structure, so performance remains consistent over the grain silo’s entire service life.

2. Fast Construction

A spiral silo is erected in 1-2 weeks using a portable forming machine set up directly on the foundation. No scaffolding, no heavy crane lifts, and no welding delays. For urgent projects or tight harvest windows, this speed is a decisive advantage.

3. High Structural Strength

The spiral rib acts as a continuous stiffener, dramatically increasing resistance to wind, seismic forces, and internal grain pressure. This allows a spiral steel silo to use thinner plates (2.5–6mm) while achieving excellent strength – reducing material costs and foundation requirements.

4. Corrosion Resistance

Henan Jinrui spiral silos are manufactured from hot-dip galvanised steel (≥275g/m² coating, with Z450–Z600 for extreme environments). Stainless steel options (304, 316) are also available. With proper maintenance, a spiral silo for grain storage serves reliably for 25–35 years.

5. Smooth Interior

The interior can be finished with continuous seam welding to create a smooth wall surface. This eliminates material hang-up points, prevents bridging and rat-holing, and simplifies cleaning between grain types – an important advantage for grain processing facilities handling multiple crops.

6. Lightweight & Compact

A spiral steel silo weighs about one-sixth as much as a concrete silo of the same capacity, dramatically reducing foundation costs. Silos can be placed as close as 500 mm apart, maximising storage density on limited land.

7. Automation Ready

Like all Henan Jinrui steel silos, spiral silos integrate easily with aeration floors, temperature monitoring cables, level sensors, dust collection ports, and automated conveyors – creating a complete grain storage system.

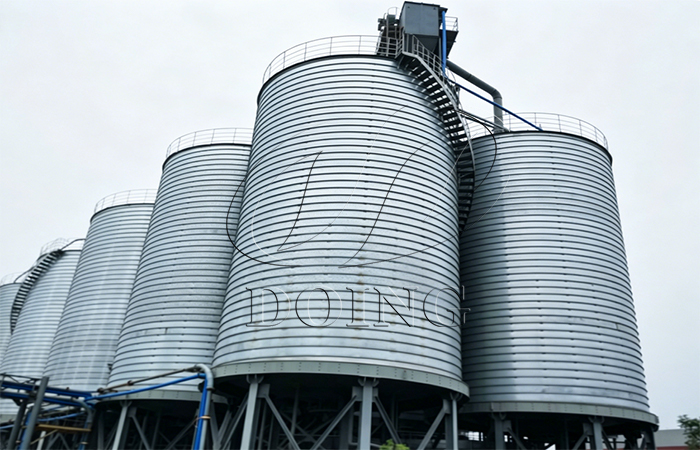

Henan Jinrui grain spiral silo

Spiral silos shine in grain processing facilities – flour mills, feed mills, and oilseed plants – where fast erection (1–2 weeks) and excellent sealing allow capacity expansion between harvests with minimal downtime. At grain collection points and port terminals, speed matters: a spiral steel silo can be operational before the next ship arrives, and its compact footprint (silos as close as 500 mm) maximizes land use. On farms, harvest waits for no one; a spiral silo goes from foundation to ready in days, giving immediate storage for corn, wheat, rice, or sunflowers. Beyond grain, the same airtight construction works for biomass pellets, animal feed, and even liquids or fine powders when fitted with appropriate seals.

That said, spiral silos are not for every project. If you need single-silo capacity beyond 15,000 tons, welded silos are more practical. For a 50+ year asset requiring maximum permanence, welded again is the better choice. And if relocatable storage – something you can disassemble and move – is a priority, bolted silos are the only option. But for the typical grain storage project where speed, sealing, and cost are the real drivers, a Henan Jinrui spiral silo hits the mark perfectly.

A spiral silo is not assembled – it is grown. From a single steel strip, continuous forming creates a structure that is inherently airtight, remarkably strong, and ready for grain in days, not months. This speed, combined with exceptional sealing and structural integrity, makes the spiral silo a compelling choice for operations where time and grain quality matter most.

Henan Jinrui engineers every spiral steel silo as part of a complete grain storage system, integrating aeration, temperature monitoring, and automation. Ready to experience the spiral difference? Contact Henan Jinrui today. Tell us your capacity needs and timeline – we will design a spiral silo that goes up fast and seals tight.
