Efficient grain storage relies on the continuous monitoring and timely control of environmental conditions and grain processing equipment. Manual operations are often inefficient, prone to delays, and introduce unnecessary risks to grain quality. Henan Jinrui offers PLC (Programmable Logic Controller) control systems specifically designed for grain silos. By integrating various sensors, actuators, and control panels, this PLC control system enables comprehensive monitoring and management of internal temperature, humidity, ventilation status, grain levels, and conveying equipment. It empowers storage managers to maintain optimal storage conditions while effectively reducing both labor and energy costs.

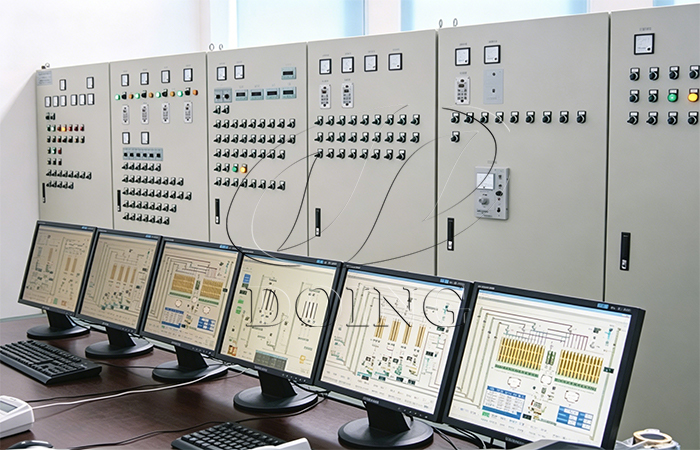

PLC control system for grain monitoring

(1) Real-Time Multi-Parameter Monitoring

The PLC control system continuously collects data from grain temperature sensors placed at different silo heights, humidity sensors both inside grain silos and in ambient air, fill-level sensors such as ultrasonic or radar types, and equipment status indicators. All measured values are displayed on a central HMI screen with color-coded visuals, allowing operators to quickly see which grain silo needs attention without climbing bins or walking through large storage yards.

(2) Automated Aeration Control

Maintaining proper grain moisture and temperature is critical to prevent mold, insect activity, and hot spots. The PLC control system uses logic-based automation to compare internal grain silo conditions against user-set thresholds. It starts aeration fans automatically when outside air is suitable – for example, when ambient humidity is lower than grain moisture or when outside temperature is cooler – and stops the fans when conditions become unfavorable, thereby saving electricity.

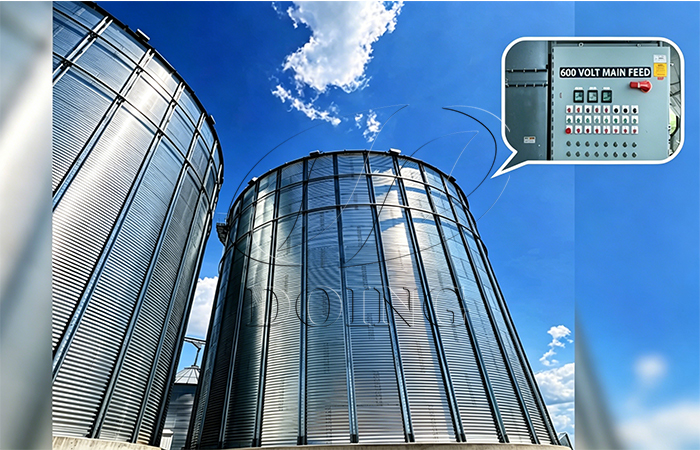

PLC control system for grain silo storage system

(3) Conveyor and Elevator Interlocking

Grain transfer typically involves multiple pieces of equipment, including bucket elevators, belt conveyors, screw conveyors, and diverters. A wrong startup or shutdown sequence can cause material jams or equipment damage. Henan Jinrui's PLC control system ensures that the start-up and shutdown sequence of this equipment is safe and standardized. In addition, the PLC control system has an emergency shutdown interlock mechanism to ensure that if any downstream equipment fails, the shutdown command of the upstream equipment will be triggered immediately; at the same time, the pre-start alarm function will issue a warning to nearby personnel, thus significantly reducing the risk of mechanical failure and operator injury.

(4) Centralized and Remote Alarm Management

The PLC control system monitors for abnormal conditions such as high grain temperature, fan failure, motor overload, silo overfill, communication loss, or power outage. Local alarms activate horns and flashing lights on the control panel, while screen pop-ups display the exact fault location and suggested action. For facilities with network connectivity, optional remote notifications via SMS, mobile app, or email can be enabled, helping operators identify recurring issues and take preventive measures before a major incident occurs.

(5) Historical Data Logging and Trend Analysis

Unlike simple timers or manual logs, the PLC control system stores temperature and humidity curves per grain silo over days or weeks, fan run-hours and estimated energy consumption, as well as conveyor start-stop counts and total runtime. Operators can use these data to continuously optimize and improve grain storage management practices.

In summary, Henan Jinrui's PLC control system, specifically designed for the grain storage sector, delivers reliable automation capabilities to the crucial post-harvest grain management process. If you have any specific requirements, please feel free to contact Henan Jinrui. Just a brief discussion about your silo layout, grain type, and existing equipment status will allow our professional team to tailor a PLC control system solution for you.
