Grain in your grain silos is alive. It breathes, releases heat, and can spoil quickly if temperatures rise. When grain stays above 25°C, pests like rice weevils breed every 10–14 days. A temperature difference of more than 3°C per meter inside the grain storage system causes moisture to move upward, leading to mold and hot spots.

The solution is Henan Jinrui grain temperature control system that constantly watches and adjusts the climate inside your grain silos. It keeps grain at safe temperatures (≤15°C for rice, ≤18°C for wheat), stops moisture migration, and prevents insects from multiplying.

Grain temperature control system

The core objective of a grain temperature control system is straightforward but demanding: maintain the entire grain mass within species-specific safe temperature bands while eliminating local temperature differentials exceeding 2°C.

For paddy rice, the safe band is ≤15°C. For wheat, it is ≤18°C. Achieving this level of control with a temperature control system for grain silos delivers four measurable benefits:

• Uniform temperature – stops moisture migration and hotspot formation

• Stable moisture – prevents condensation and mold

• Insect suppression – low temperatures break pest reproductive cycles

• Mold prevention – eliminates conditions where mycotoxins develop

This is not about occasional manual checks. This is about continuous, intelligent, closed-loop control powered by a reliable grain monitoring system for temperature control.

Temperature control system for grain monitoring

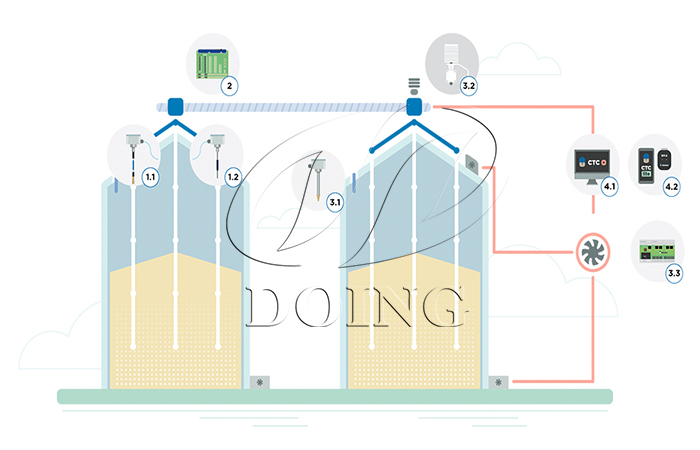

A reliable grain monitoring system for temperature control uses:

PT100 sensors – placed in a grid throughout the grain silo to measure temperature at many points.

Cable networks – vertical sensor cables that report conditions from top to bottom.

PLC control unit – collects data and compares inside grain temperature with outside air.

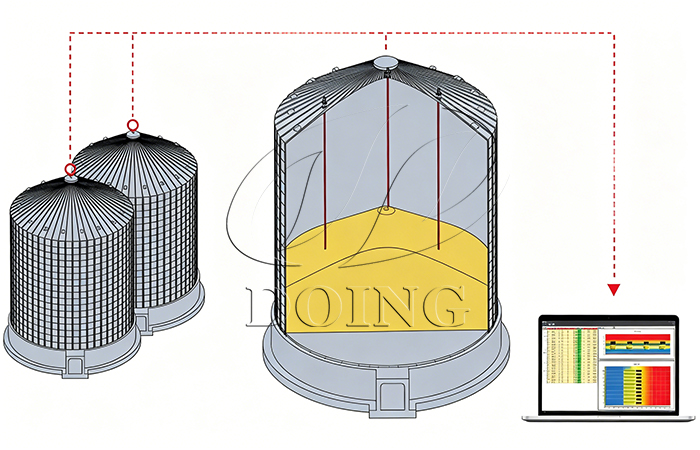

SCADA software – shows 3D temperature maps on one screen and sends alerts to mobile phones.

Fans, louvers, chillers – execute the commands to cool or ventilate the grain as part of the temperature control system for grain silos.

All parts are built for dusty grain handling environments, giving long life and low maintenance for your grain storage system.

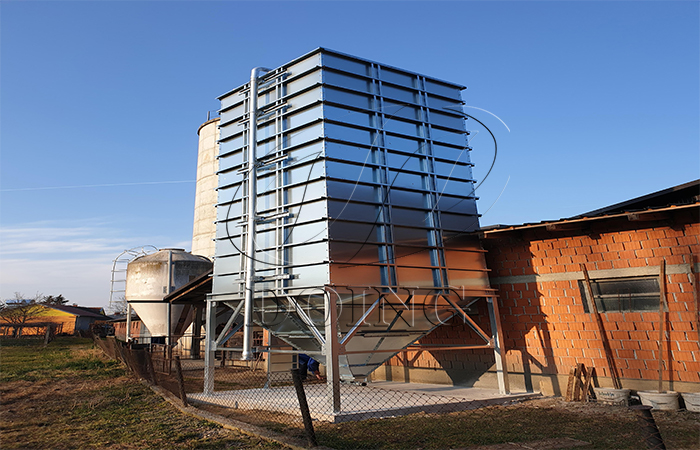

Grain square silo

1. Monitor

Multi-point sensors inside the grain silo measure grain temperature (e.g., 25°C in the center, 22°C near the wall). An outside sensor checks air temperature (e.g., 18°C) and humidity (e.g., 55%). All data feeds into the grain monitoring system for temperature control.

2. Compare & Decide

The PLC compares inside and outside conditions. The grain temperature control system turns on fans only when outside air is cooler and drier than the grain. This saves energy and avoids adding moisture to your grain storage system.

3. Act

If conditions are good, the system opens motorized louvers and starts fans. A perforated floor or duct network spreads air evenly, pushing a “cooling front” through the whole grain storage.

Three modes are available:

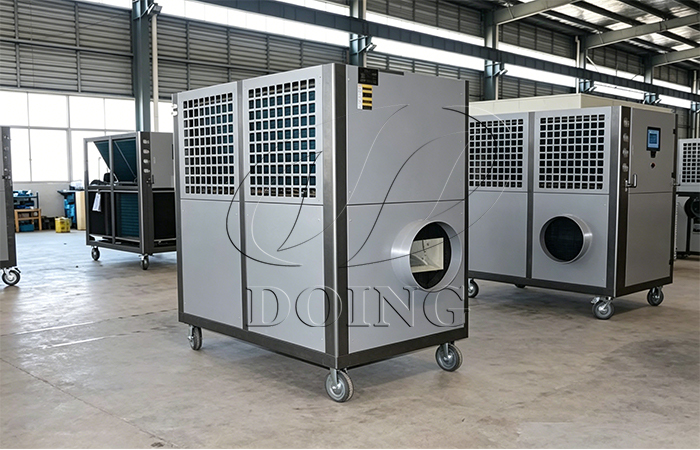

Low-Temperature Mode – uses chillers (-5°C to 15°C) to actively cool the grain silos.

Ambient-Optimization Mode – uses outside air naturally when it is cool and dry.

Targeted Heating Mode – injects hot air (60°C for 30 min) to kill deep pests in a specific zone.

4. Stop & Log

Once grain temperature reaches the target (e.g., 12°C everywhere), fans stop. Louvers close. The whole cycle is automatically recorded with timestamps and temperature curves by the grain temperature control system.

5. Central Management

One operator controls many grain silos from a SCADA screen. The system logs every event and can send alarms to mobile devices.

For hot, humid climates (tropics), we add mechanical chillers to cool and dehumidify air before it enters the grain silo as part of a complete grain storage system.

Henan Jinrui grain temperature control system

Predictive alerts: AI analyzes sensor data and forecasts hot spots before they form. You get an alert on your phone from the grain temperature control system.

Energy savings: Fans and chillers run only when helpful, cutting electricity use by 30–50% across your grain storage system.

Better grain quality: Uniform temperature (±1°C across the grain silo) stops moisture migration, mold, and insect breeding.

Less labor: One person manages a whole grain silos terminal from a desk. No climbing or manual checks.

Full traceability: Every aeration cycle is recorded. You can prove proper storage to auditors and buyers using data from the temperature control system for grain silos.

Easy integration: Works with your existing drying system, fumigation system, and grain aeration system.

Henan Jinrui grain temperature control system transforms invisible heat and moisture risks into visible, actionable data – every alert, every logged cycle, every uniform temperature map becomes proof of precision. Henan Jinrui designs each temperature control system for grain silos to work seamlessly within your complete grain storage system, not as an add-on but as the intelligent core that protects your investment.

Stop reacting to spoilage. Start preventing it with a grain monitoring system for temperature control. Contact Henan Jinrui today to protect your grain silos from hidden threats.
