As grain conveying equipment in modern grain storage silos, Henan Jinrui's belt conveyors provide reliable, uninterrupted and gentle grain handling solutions, fully meeting the conveying demands of grain silo projects of all sizes.

A Belt conveyor is widely utilized in grain silos, responsible for transporting grain from the loading point to the unloading point. It features a wear-resistant continuous belt made of heavy-duty rubber or composite fabric, which is tensioned and wrapped around multiple driven pulleys to form a closed conveying loop. Driven by electric power systems, this belt conveyor can transport various grains, including wheat, corn, rice, soybeans, and barley, horizontally, on an incline, or on a decline, serving as a key link connecting grain receiving, storage, processing, and distribution operations.

Henan Jinrui grain belt conveyor

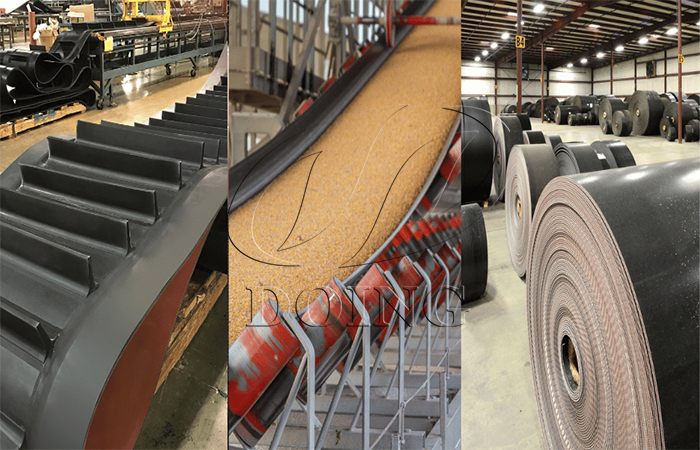

Our grain belt conveyors feature a robust and optimized structure, mainly composed of a conveyor belt, supporting rollers, power transmission device, stainless steel or heavy-duty steel support frame, tensioning unit, cleaning device, and safety protection components. Each part is precision-engineered to ensure long-term stable operation under heavy-load grain conveying conditions.

The working process of the belt conveyor is simple and efficient, with full automation support. First, grains are fed onto the conveyor belt evenly through the feeding hopper at the loading point. Then, the power unit drives the driven pulleys to rotate, which pulls the conveyor belt to move at a steady speed (0.8-4.0 m/s). The belt carries grains forward stably, relying on its anti-slip surface design. Finally, grains are unloaded smoothly at the designated discharging point, such as grain silos or downstream conveying lines, completing the whole grain transfer process.

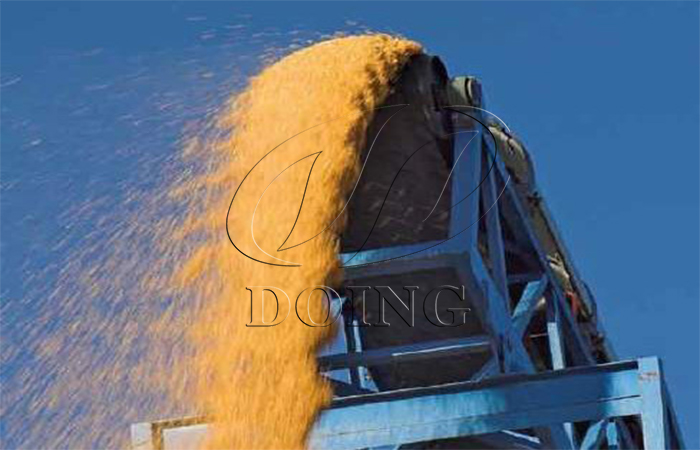

Belt conveyor for grain

Our belt conveyors are customized for grain silo applications, bringing tangible benefits to your grain storage and handling operations:

1. Gentle Grain Handling & Quality Protection

The smooth and low-impact conveying mode minimizes grain breakage, effectively preserving the quality of sensitive grains, which is critical for high-value grain storage and processing.

2. High-Efficiency & Continuous Conveying

It enables uninterrupted bulk grain transportation, with a conveying capacity ranging from 30 to 3000 tons per hour to meet small, medium, and large-scale silo project demands. The equipment supports a conveying length of over 100 meters, enabling long-distance grain transfer between large silos.

3. Strong Adaptability & Flexible Configuration

Our belt conveyors have an adjustable conveying angle to adapt to different site elevation needs. The belt width can be customized from 400mm to 2400mm, and we also provide optional steel covers for sealed conveying, as well as adjustable speed and anti-deviation functions for personalized grain silo solutions.

4. Energy-Saving & Cost-Effective Operation

The belt conveyor has lower power consumption, which greatly reduces energy costs in long-term operation. Its automated design also lowers labor input, improving the overall efficiency of grain silo operations and reducing overall operating costs.

5. Safe & Stable Operation

Equipped with a complete safety protection system, the belt conveyor runs stably with a low failure rate, effectively avoiding grain spillage and equipment accidents. It can be seamlessly integrated into automatic grain silo control systems, realizing intelligent and unmanned grain conveying management.

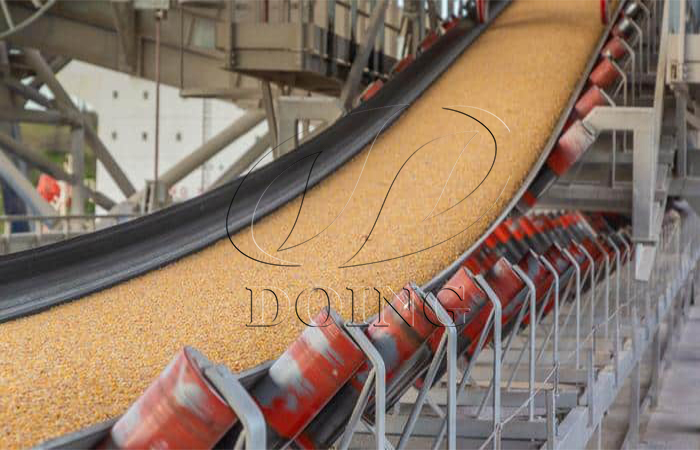

Belt conveyor for grain storage

Focusing on grain silo system R&D and manufacturing for years, we not only provide high-quality belt conveyors but also offer turnkey grain silo solutions according to your scale, grain type, and site layout.

If you are looking for reliable grain conveying equipment for your silo project, Henan Jinrui’s belt conveyor is your optimal choice. Contact us now for detailed technical specifications and the latest quote!
