In grain storage systems, dust control is about more than keeping things clean—it's about safety. While cyclone collectors effectively capture larger dust particles, they leave behind the finest, most hazardous dust. This is where the pulse dust collector comes in.

Henan Jinrui pulse dust collectors are installed at critical points within grain silos where the finest dust must be captured. Common locations include silo vents and filling points, where air rushing out during filling carries microscopic dust from stored grain. Grain drying systems generate fine, dry dust that stays airborne. Pneumatic conveying systems move grain with air that needs cleaning before release. Truck dumps and receiving pits also benefit from pulse jet filtration to capture particles that escape cyclones.

In short, anywhere cyclones leave dust behind, pulse jet collectors finish the job—delivering cleaner air for your grain storage operation.

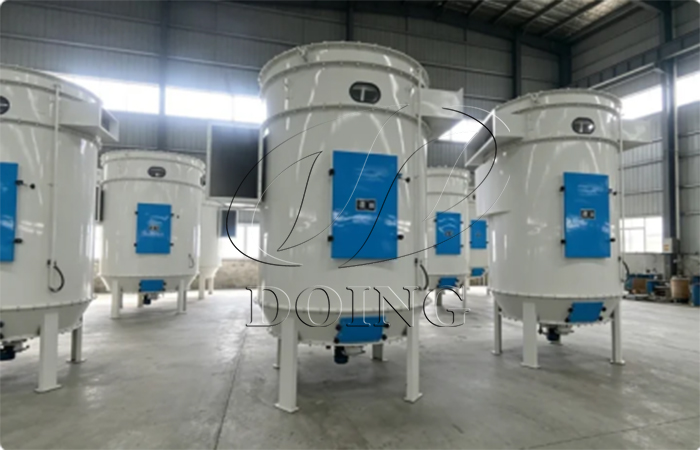

Henan Jinrui pulse dust collector

Henan Jinrui pulse collectors operate on a straightforward principle. Dust-laden air enters the unit. Coarse particles drop directly into the hopper below. Fine dust adheres to the outer surface of fabric filter bags. As dust accumulates, resistance builds. When it reaches a set threshold (typically 1200–1500 Pa), the system automatically triggers a cleaning cycle. A burst of compressed air is injected into each filter bag, causing it to flex violently and dislodge the accumulated dust. The dust falls into the hopper, and the cycle repeats—chamber by chamber, without interrupting operation.

This automatic cleaning process enables continuous 24/7 operation with over 99% filtration efficiency, making it the preferred choice for maintaining clean air in grain silos.

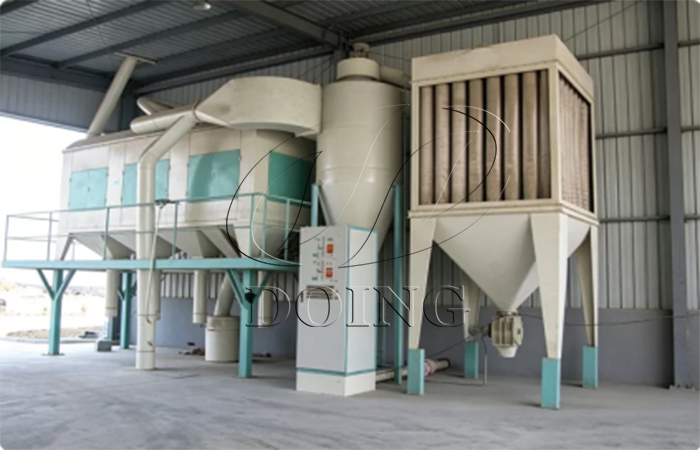

Pulse dust collector for grain pre-cleaning

• Automatic pulse control – Multi-segment, multi-frequency cleaning adapts to real-time dust loads with no manual intervention. Pulse duration and cleaning cycles are controlled by a programmable controller.

• High dust concentration handling – Designed to treat high-concentration dust-laden air, making it suitable for demanding grain storage environments.

• Easy maintenance – Filter bags are accessed from the top of the dust chamber. Choose spring-loaded or cage-mounted installation; cage mounting offers easier maintenance with no height restrictions.

• Robust construction – Cylindrical housing provides strength and rigidity. Tangential centrifugal intake reduces equipment resistance and filter bag load.

• Precise control – High-precision controller with multiple adjustable parameters and an intuitive display ensures reliable, simple operation.

• Food-grade and explosion-proof – Designed with food-grade filtration materials and explosion-proof features to meet the safety requirements of grain silos.

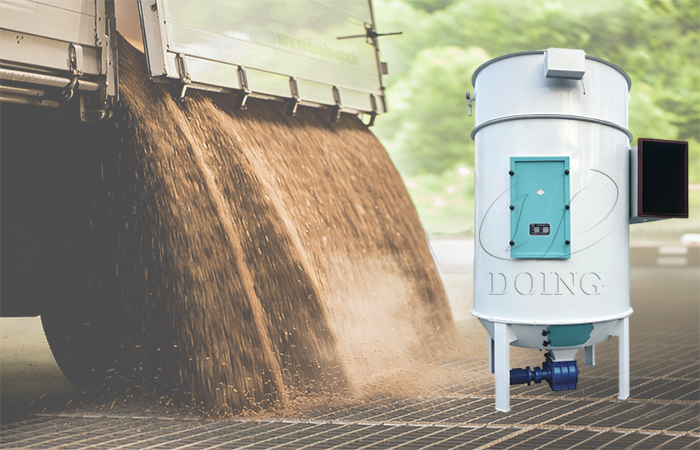

  Pulse dust collector for grain cleaning

For grain silos, cyclones and pulse collectors work together as a two-stage system. Henan Jinrui designs both—ensuring seamless integration. Cyclones handle the heavy load, capturing larger particles at receiving pits and conveyor transfer points, protecting downstream equipment and reducing the load on final filters. Pulse dust collectors capture the remaining fine dust, ensuring that air discharged from silo vents meets environmental and safety regulations.

Cyclone collector handles what you can see. The pulse collector handles what you can’t. Together, they provide complete dust control for your grain storage operation.

Henan Jinrui designs and manufactures pulse dust collectors specifically for grain silo applications. Every unit is engineered with food-grade considerations, explosion-proof features, and the durability required for continuous operation. Beyond individual equipment, we deliver integrated grain storage solutions—combining cleaning, conveying, drying and storage into seamless turnkey systems.

Whether you need a standalone unit for a single silo vent or a complete grain storage systems, Henan Jinrui equipment performs reliably. Contact us today to discuss your application and find your best grain storage solution.
