When it comes to grain drying for grain silos and long - term grain storage, Henan Jinrui offers a complete range of solutions. For raw grains like corn, wheat, and rice, our tower dryers provide gentle, precise moisture removal ideal for long - term storage. However, some grains or high - moisture crops require faster throughput or handle higher initial moisture levels. That is where the rotary drum dryer becomes an equally important part of our grain storage system.
Henan Jinrui manufactures both tower dryers and rotary drum dryers as integral components of our complete grain storage solutions. This article explains how a rotary drum dryer works and why it is a valuable option for certain grain drying applications within a grain silo facility.

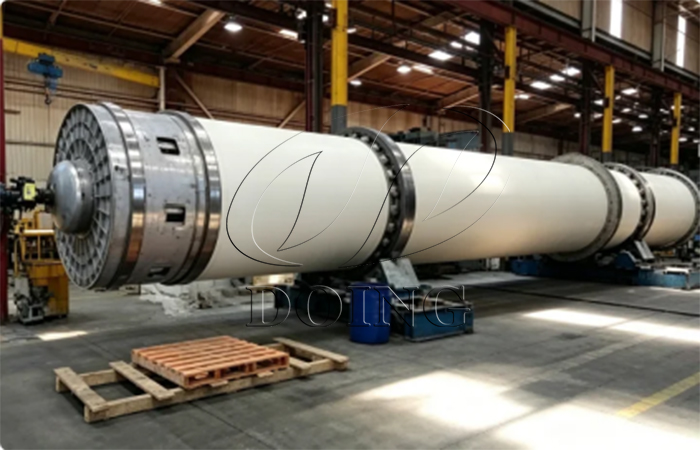

Henan Jinrui rotary drum grain dryer
A rotary drum grain dryer (also called a rotary dryer) is a key component of many grain handling and grain storage systems. It consists of a large, slightly inclined cylindrical drum that rotates slowly. Wet grain or high - moisture material is fed into the higher end. As the drum turns, internal flights (lifting plates) continuously lift and shower the material through a hot air stream. Gravity moves the material toward the lower end, where it is discharged continuously. This creates a uniform "curtain" of material, maximizing contact with hot air for rapid evaporation. This direct - fired, tumbling action is the core of the rotary drum dryer's operation. It is a continuous grain drying system built for 24/7 throughput, not intermittent batch work – making it a versatile option for certain applications within a grain silo facility.

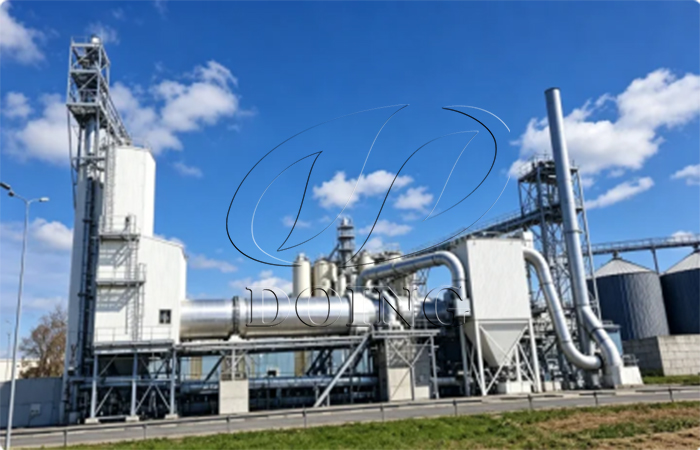

Grain rotary drum grain dryer
A rotary drum grain dryer is not designed to replace a tower dryer for long - term grain storage of pristine kernels. However, within a complete grain storage system, there are specific scenarios where a rotary dryer becomes the ideal choice.
Scenario 1: High - moisture grain for short - term storage
When harvest conditions bring in corn or wheat at moisture levels above 25%, a tower dryer may struggle to keep up. A rotary drum dryer, with its aggressive tumbling action and high heat, can quickly drop moisture to 18–20%, after which the grain can be transferred to grain silos with aeration for final drying and storage. This two - stage approach saves time during peak harvest.
Scenario 2: Grain destined for processing plant
If the final product is animal feed, ethanol, or flour, minor kernel cracking is acceptable. A rotary drum grain dryer offers high throughput and continuous operation, making it the preferred grain drying solution for feed mills, ethanol plants, and grain processing facilities.
Scenario 3: Grain by - products
Materials like brewer's spent grain (BSG), distiller's dried grains (DDGS), wheat bran, corn husk, and starch pulp are too sticky and wet for a standard grain drying system. The rugged tumbling action of a rotary dryer handles them with ease, turning waste into valuable animal feed or biomass – all while staying part of an integrated grain storage system.
In these cases, the final product may not require months in a grain silo, but the rotary drum dryer remains a vital component of your overall grain handling and grain storage infrastructure.
The table below highlights how a rotary drum dryer and a tower dryer serve complementary roles within a complete grain storage system.
| Feature | Tower Dryer | Rotary Drum Dryer |
| Primary Application | Raw grain for storage (corn, wheat, rice, soybeans) | High - moisture grain for processing (e.g., corn at 28%, DDGS, bran) |
| Material Handling | Gentle, gravity - based flow; low mechanical impact | Tumbling and agitation; robust for sticky/wet materials |
| Target Moisture | Precise (e.g., 14.5% for corn) – ready for long - term grain storage | Wide range (from 25% down to 18–20% or 80%+ down to 12–15%) |
| Goal | Quality preservation for long - term grain storage | Rapid moisture reduction and throughput for processing |
Both dryers are integral to Henan Jinrui’s complete grain storage solutions – ensuring you have the right equipment for every grain drying need.

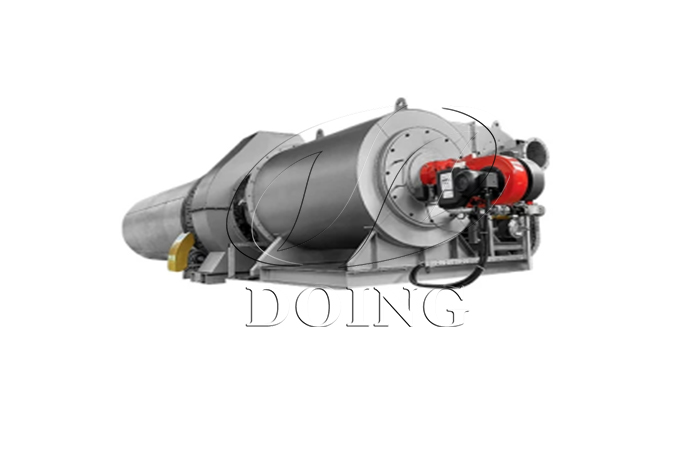

Rotary drum grain dryer for grain drying
Handles the toughest materials: Ideal for sticky, high - moisture grain and by - products that would choke other grain drying equipment. Capable of reducing moisture from over 80% to safe levels for further grain storage.
Massive throughput: A continuous rotary drum dryer built for 24/7 industrial operation, ensuring high - capacity grain handling without bottlenecks.
Uniform drying: The tumbling action ensures every particle is exposed to hot air, eliminating wet spots and preparing material for efficient grain silo filling.
Energy efficient: Designed with heat recovery to lower operating costs, making your grain storage system more economical.
Rugged and reliable: Built with heavy - duty components for long service life and easy maintenance – a dependable part of any grain storage solution.
A rotary drum grain dryer is not a replacement for a tower dryer, but a powerful complement within a complete grain storage system. Whether you need to dry high‑moisture corn before short‑term storage, process grain for feed or ethanol, or convert sticky by‑products into valuable biomass, Henan Jinrui has the right grain drying solution.
From tower dryers for pristine grain silo storage to rugged rotary drum dryers for high‑throughput applications, our equipment is designed to work together. Ready to optimize your grain drying process? Contact Henan Jinrui’s engineering team today. We will help you select the right drying system – for your grain handling and grain storage needs.
