Henan Jinrui offers a dedicated pneumatic conveyor for grain silos, designed to move bulk grain through enclosed pipelines using air flow under positive or negative pressure. Unlike traditional mechanical conveyors such as belt conveyors, bucket elevators, or screw conveyors, Henan Jinrui’s pneumatic conveyor provides a cleaner, more adaptable, and lower‑maintenance solution for filling silos, transferring grain between bins, or unloading into trucks and processing lines. The pneumatic conveyor handles common grains including wheat, corn, soybeans, rice, and sorghum, with careful control of conveying velocity and air‑to‑product ratio to minimize grain damage.

(1) Power Source: Equipment such as blowers or air compressors generate the necessary positive or negative pressure airflow.

(2) Feeding Device: Mechanisms such as rotary valves or jet pumps feed grain into the airstream in a precise, stable, and metered manner.

(3) Conveying Pipelines: A sealed network of conduits can be flexibly routed to suit specific requirements—even allowing them to bypass existing buildings and equipment.

(4) Separation Device: Equipment located at the destination point separates the grain from the airstream (typically using cyclone separators or bag filters).

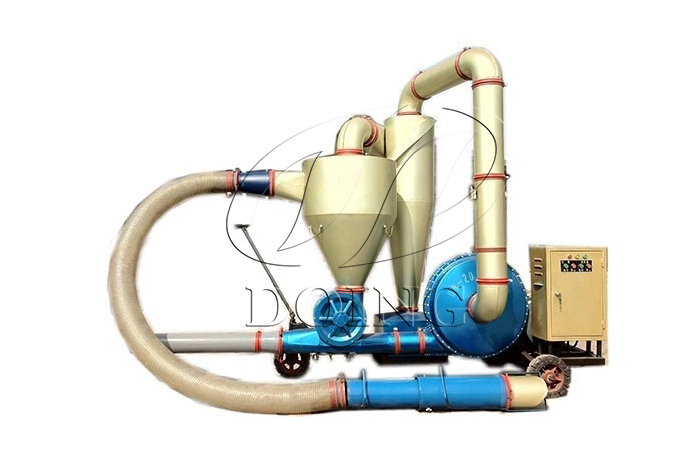

Henan Jinrui grain pneumatic conveyor

Enclosed and Dust‑Free Operation

One of the most significant advantages of a pneumatic conveyor is its fully sealed pipeline. Grain moves from the pickup point to the discharge point inside a closed tube, with no open transfer points. This design prevents dust from escaping into the grain silo area, improving workplace air quality and reducing the risk of dust explosions. It also keeps the grain clean by eliminating contamination from ambient dust, pests, or foreign materials. For facilities subject to environmental regulations or aiming for higher safety standards, this feature is essential.

Flexible Routing and Multi‑Point Discharge

Mechanical conveyors have limited flexibility and often require straight, inclined, or vertical paths. A pneumatic conveyor produced by Henan Jinrui for grain silos uses pipes that can bend, rise vertically, run horizontally, or be routed around existing structures. This allows the pneumatic conveyor to serve multiple grain silos from a single blower unit. With a diverter valve or rotary distributor, the operator can direct grain to any silo in the battery without installing separate conveyors for each grain silo. This flexibility reduces initial equipment cost and simplifies future expansion.

Gentle Conveying and Low Maintenance

Henan Jinrui’s pneumatic conveyors minimize grain damage and reduce long‑term maintenance. Unlike screw conveyors or bucket elevators that can crack dry or brittle kernels, a pneumatic system suspends grain in air and accelerates it gradually, reducing impact against metal surfaces. It also avoids particle size segregation because the air stream continuously mixes the grain. At the same time, pneumatic conveyors have only one moving part in contact with grain – the rotary airlock at the pickup point – while the pipeline itself has no moving parts. Maintenance is largely limited to checking the blower and the rotary airlock, which translates to lower operating costs and less downtime during harvest or peak handling seasons.

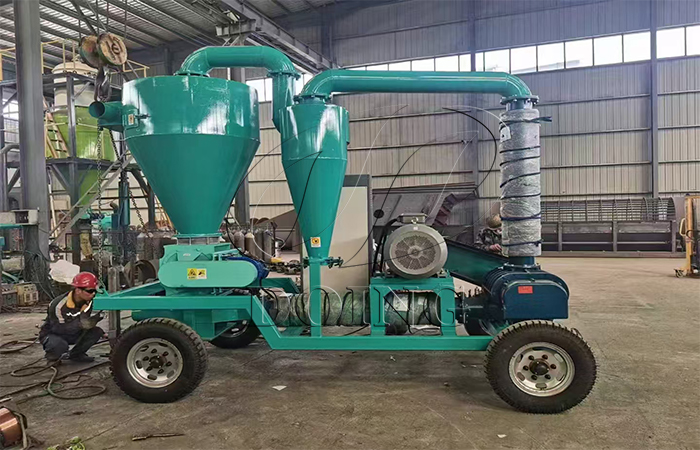

Pneumatic conveyor for grain conveying

Easy Integration with Existing Grain Silo Control Systems

Henan Jinrui designs pneumatic conveyors that can be integrated with a PLC control system for grain silos. The blower start/stop, rotary valve speed, and diverter positions can be automated based on silo level sensors or batching schedules. Remote start/stop and alarm monitoring are also available. This allows the pneumatic conveyor to work seamlessly alongside bucket elevators, cleaning systems, and dryer inlets, forming a fully automated grain handling line.

In summary, by transporting grain within a closed pipeline, this pneumatic conveyor effectively reduces dust pollution, ensures grain quality, and simplifies the pipeline layout for diverting grain to multiple silos. Whether you are building a brand new grain storage facility or planning to upgrade an existing one, Henan Jinrui's pneumatic conveyors can significantly improve the safety, efficiency, and integrity of grain products in storage operations. If you need assistance, please contact us to discuss your grain transportation needs and obtain personalized system solution recommendations.
